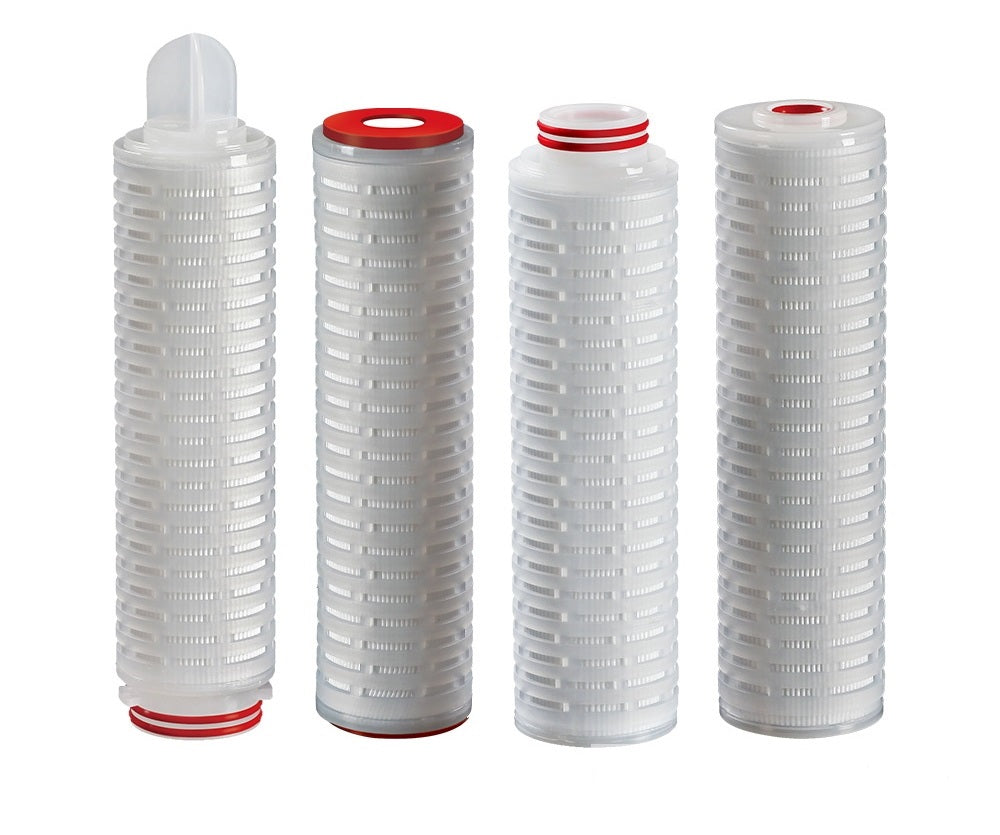

Absolute rated, pleated depth-type filters, constructed of 100% polypropylene material. These filters are available in absolute particle retention ratings from 0.1 to 50 micron and various end cap configurations to fit into the most standard housings. All components of the filter cartridges are FDA approved. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
FEATURES
- Absolute rated structure, particle removal rating from 0.1 to 50 micron
- 100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
- Consistent particle removal, no migration of filter media and non fiber shedding
APPLICATIONS
- Food & Beverage
- Plating Chemicals
- RO Pre-Filtration
- Oil Extraction
- Fine Chemical
- Process Water
Dimension
Outer Diameter: 2.7" (69mm)
Length: 5”, 10”, 20”, 30”, 40”
Material of Constructions:
Media: PP
Support: PP
Cage/Core/End cap: PP
Sealing: Silicone, EPDM, NBR,
FKM, E-FKM
Performance:
Max. Operating temperature: 80℃
Max. Operating DP: 4bar@20℃, 2.4bar@80℃
