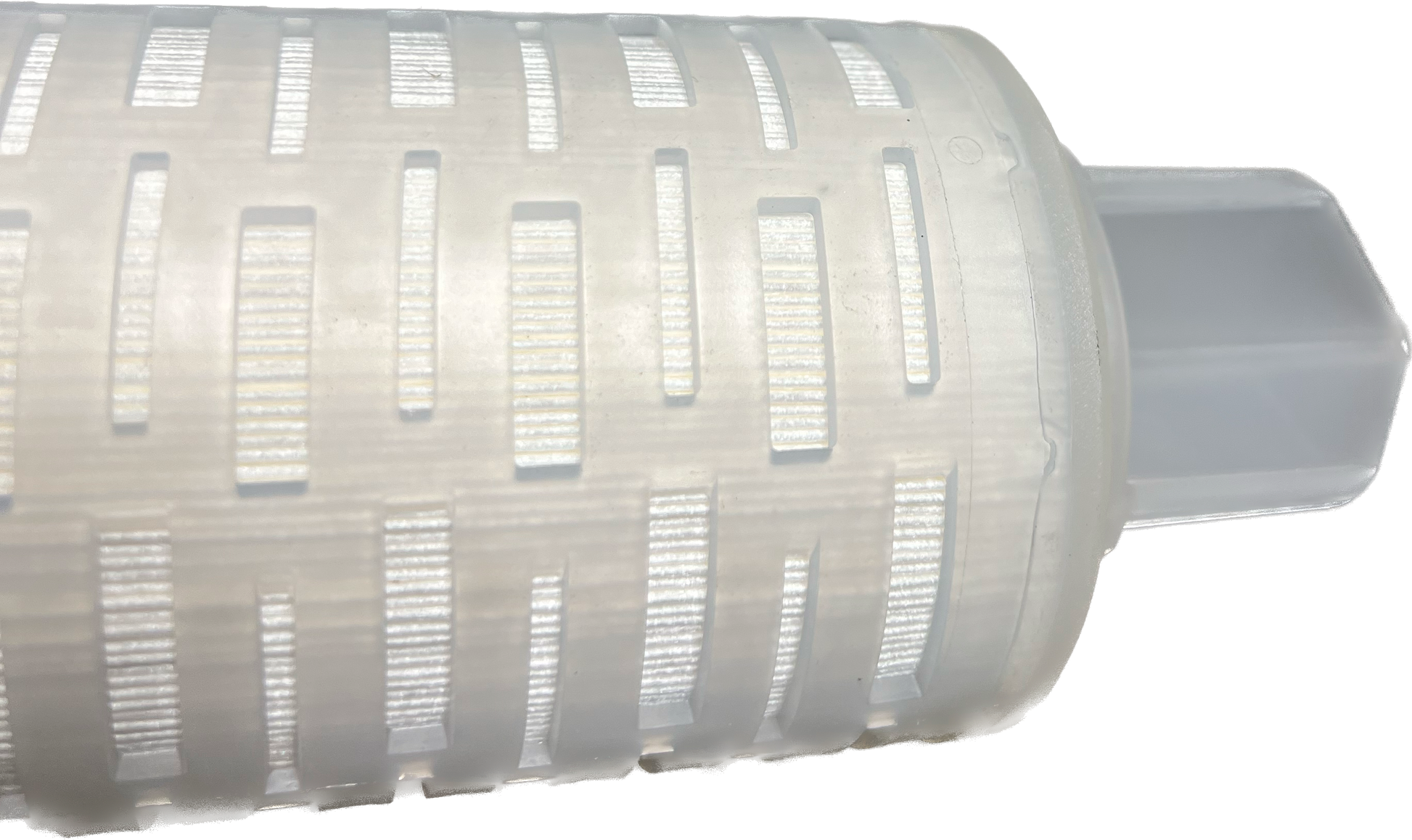

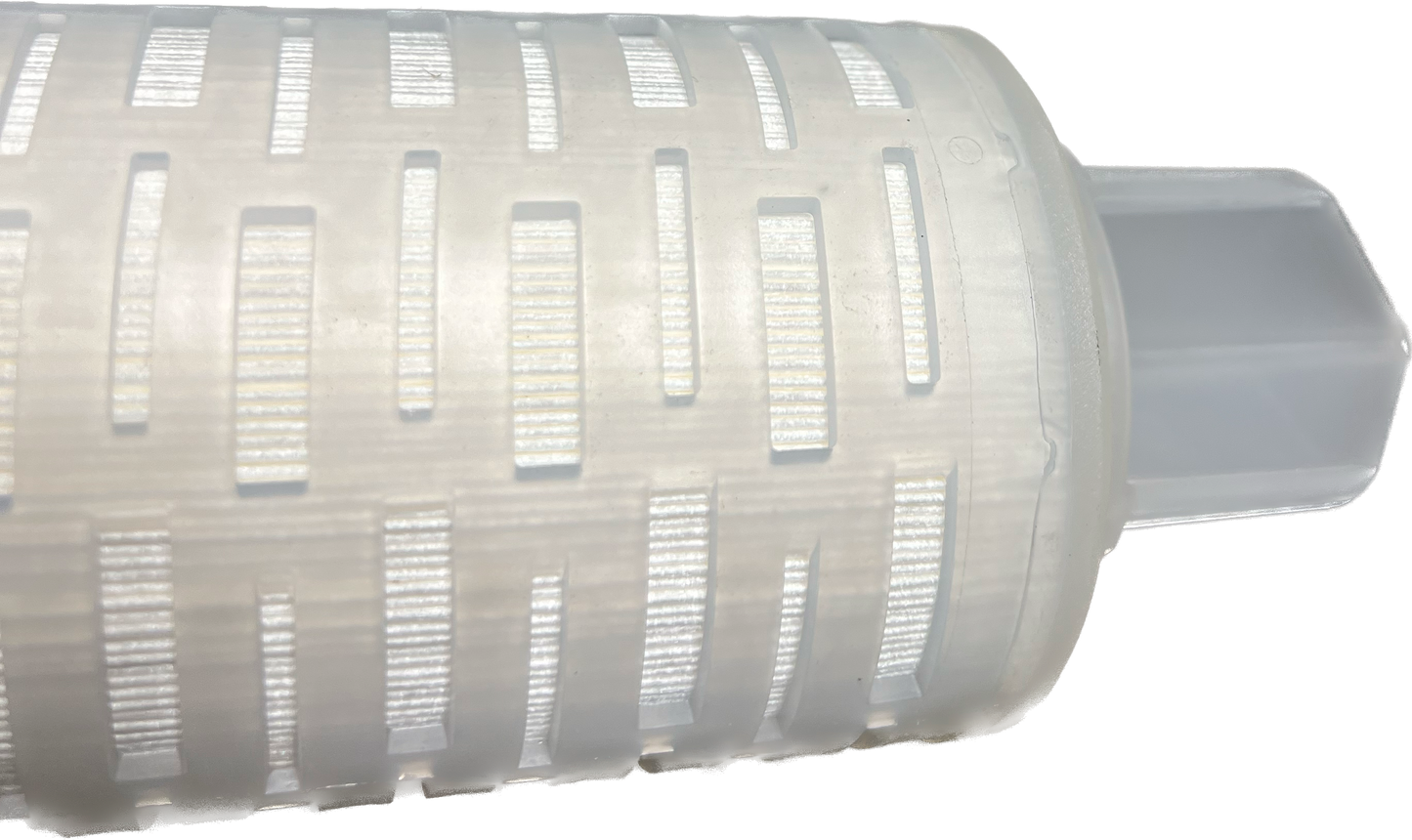

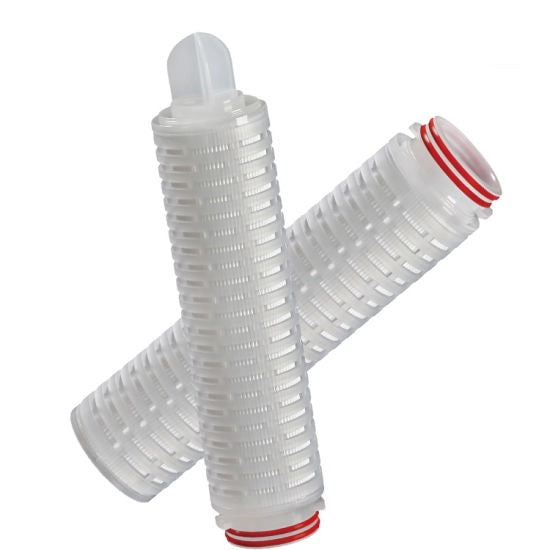

Absolute rated N66 membrane that is inherently hydrophilic and has excellent chemical resistance, it is manufactured without the use of glues, adhesives or wetting agents, ensuring high purity in various applications.

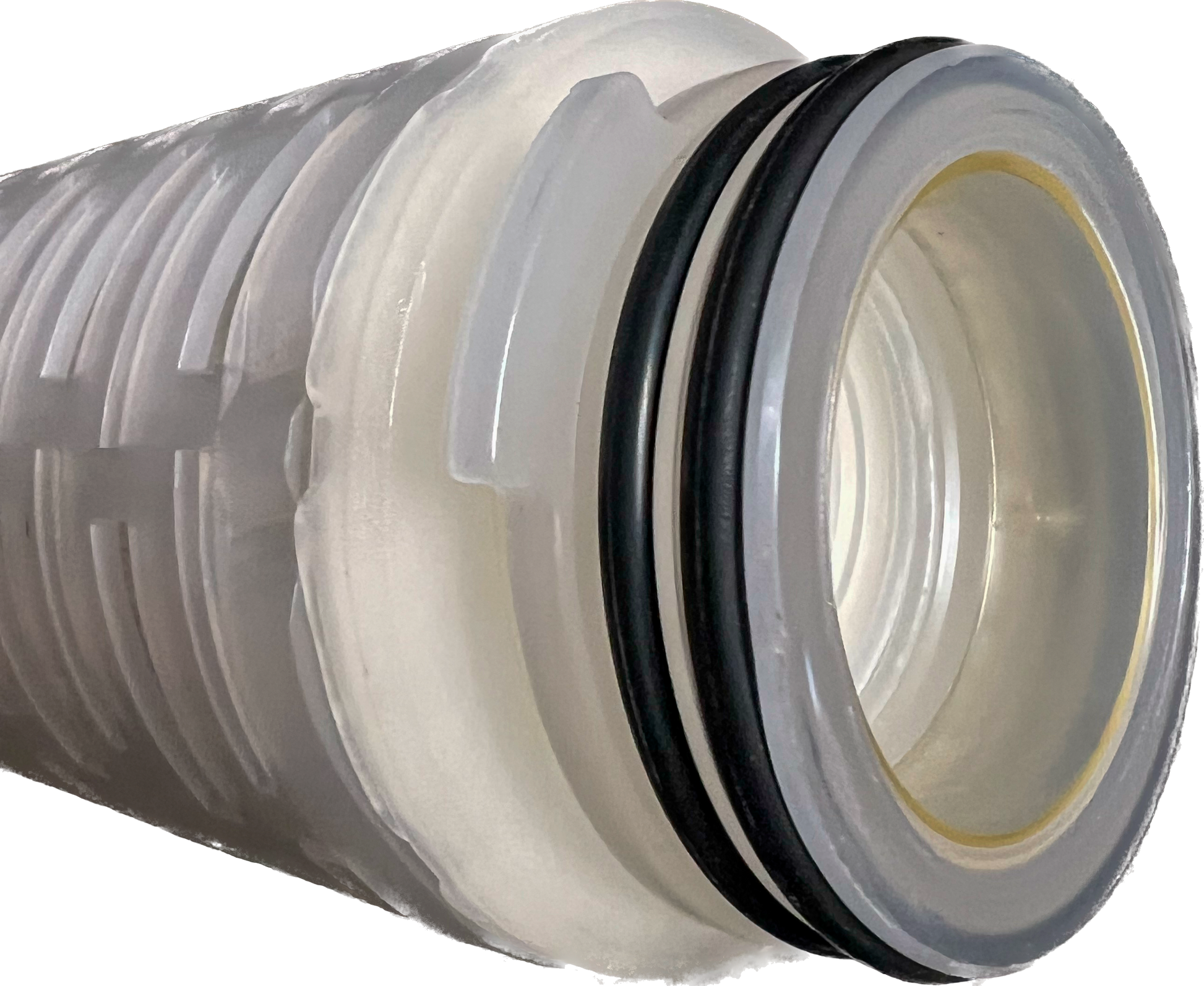

Offering Dual Layer with selecting options for upstream layer (0.1μm, 0.22μm, 0.45μm) and downstream layer (0.1μm, 0.22μm, 0.45μm) in various End Cap modifications, Length and O-Ring (Seal) materials to be tailored for your application.
Features
- Hydrophilic Nylon 66 membrane, no wetting agents
- Double layer media, absolute rated filtration
- High flow and long service life
- Superior chemical resistance
- Enhanced resistance to in-line and autoclave steam sterilization
- 100% integrity tested
Applications
- Bottled Water, Wine, Ultra Pure Water (UPW) final filtration (Polishing)
- Organic solvents and aqueous co-solvent systems
- High purity water filtration
Dimension
Diameter: 69mm (2.7")

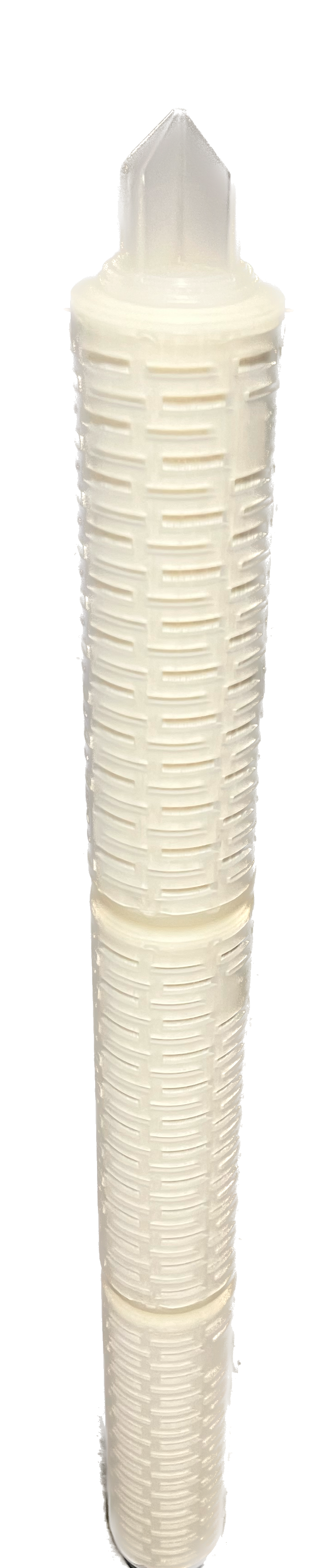

Length: 5”, 10”, 20”, 30”, 40”
Material of Constructions
Media: N66
Support: PET
Cage/Core/End: PP
Connection Adaptor: SS Insert, PSU Insert
O-Ring: Silicone, EPDM
Operating Conditions
Max. Operating Temperature: 80℃
Max. Operating DP: 4 Bar@20℃, 2.4 Bar@80℃
Sterilization
Steam Sterilization: 125℃, 30 minutes, 30 cycles
