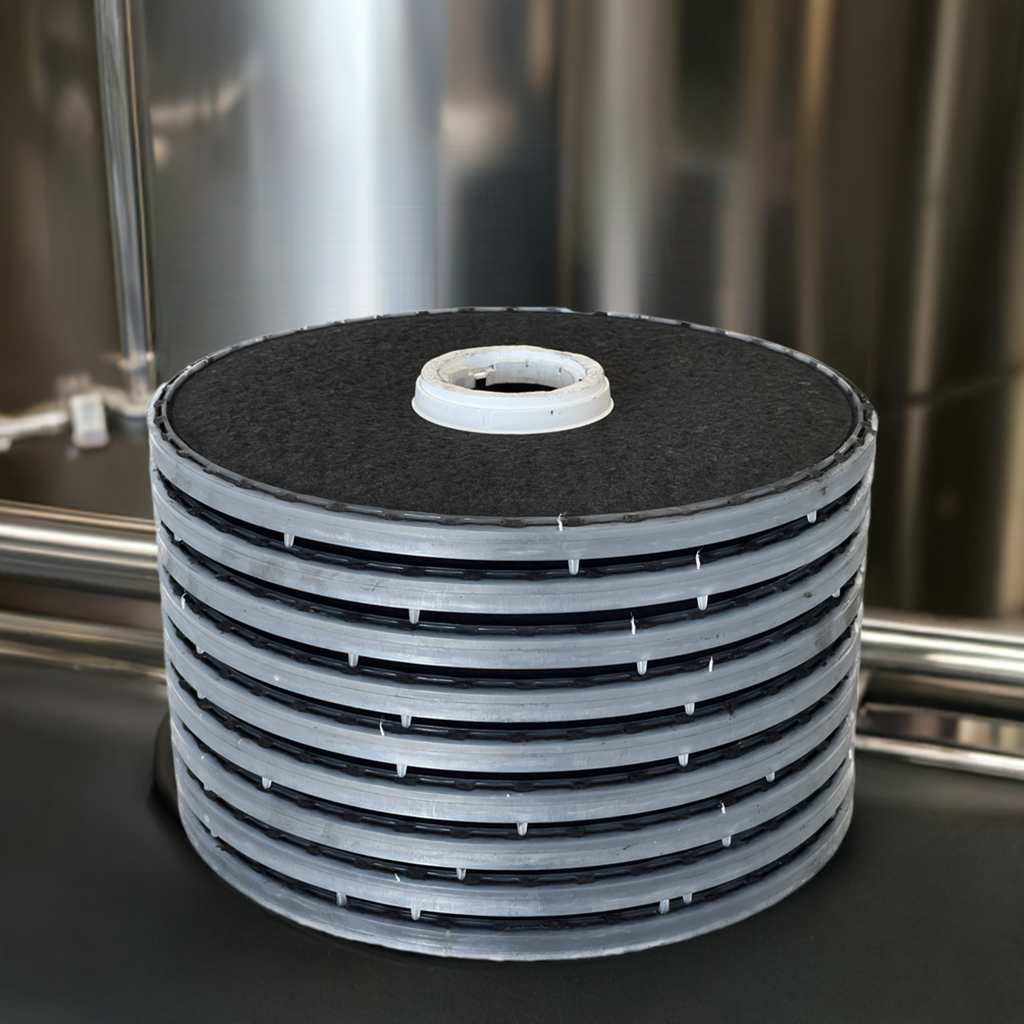

Activated Carbon Filter Cartridge in Lenticular Depth-Stack format for Spirit, Oil Extraction, Color Remediation and Odor Removal

Experience the unrivaled performance of the PARSWOOD Lenticular Activated Carbon Filter Cartridge, meticulously engineered with a cutting-edge double Separator concept. This innovative design revolutionizes stability by providing comprehensive support to the sheet material, safeguarding against deformities caused by heat treatments and the detrimental effects of contact with hot sanitation processes. With rigid external clips incorporated into its construction, this cartridge ensures seamless module loading and unloading while prioritizing the utmost protection for the filter sheets. Embrace effortless and reliable handling with the PARSWOOD Lenticular Activated Carbon Filter Cartridge, setting a new benchmark in filtration excellence.

Applications

• Removing dissociative chlorine and volatile organic compounds (VOCs) in solution
• Spirits Color and Odor Removal
• Remove smell, odor, organic pigment
• Remove Metal Ion
• Oil Extraction Color Remediation and Odor Removal

Material of Constructions
Depth Filter Sheet: Carbon Cellulose, Activated Carbon, Resins, and etc.
Core/ Support Separator: PP
Sealing: Silicon, EPDM, NBR

Performance
Max Operating Temperature: 80℃
Max Operating DP:

2.0bar/25℃
1.0bar/80℃

Ordering Information:

Removal Rating

• 150: 2-5μm

End Cap Type

• D =DOE with gaskets

• S =SOE with double O-rings(only available for 8")

Outer Diameter

• 8 = 8”
• 12 = 12”
• 16 = 16”

Seal Material

• S = Silicone
• E = EPDM
• B = NBR

Construction

• 7 = 7 Cell
• 8 = 8 Cell
• 9 = 9 Cell
• 12 = 12 Cell
• 14 = 14 Cell
• 15 = 15 Cell
• 16 = 16 Cell
