Lenticular (Depth stack) Sanitary Filter Housing

This item is produced on a Make-to-Order (MTO) basis to meet your specific requirements. Kindly allow 3 to 6 weeks for manufacturing and delivery.

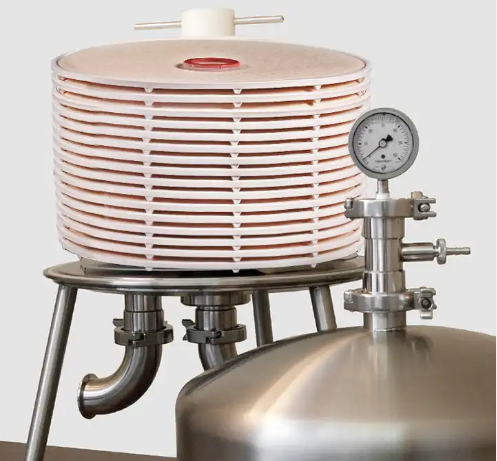

Lenticular Sanitary Filter Housing has been specially designed for depth - stack filter cartridges and generally 1-4 cartridges are allowed to install inside. The feed liquid enters from top and leaves from bottom . The product can meet the sanitary requirements which is easy to clean and has high polishing accuracy.

Surface Finish

Polish Type: Electropolished OR Mechpolished
Surface Option: Internal Ra: 0.3μm / External Ra: 0.4μm

Materials
Filter Shell: 304, 316L
Drain/Vent Valve: 304, 316L
Clamp: 304
Stabilizer Blade: 304
Seal Material/Gasket: Silicone, FKM, EPDM

Operating Conditions
Design Pressure: 0.6Mpa (6bar)

Max. Operating Temperature: 140℃

Connection
Shell Connection: Eyebolt
Inlet & Outlet: Tri-clamp / flange
Vent Valve: Inner bole 4mm (1/8"), connect with 8mm (5/16") pipe
Pressure Gauge Kit: TC-1.5"

Drawing

Typical Applications

PARSWOOD™ filtration solutions are trusted across diverse food and beverage processing operations to enhance clarity, safety, and shelf stability. Common uses include:

• Microorganism and particle reduction in wine, enzyme solutions, sugar syrups, and beer
• Final filtration of juice and juice concentrates prior to bottling
• Pre-filtration of juice prior to membrane-based final filtration
• Clarification of wine, enzyme solutions, liquor gelatin, and olive oil
• Targeted particle removal to improve product quality and consistency
• Polishing filtration for enhanced clarity and visual appeal
• Post-stabilization filtration to ensure microbiological integrity
• Pre-filtration ahead of final membrane stages for process optimization
• Reduction of spoilage organisms such as Alicyclobacillus acidoterrestris
• High-efficiency final filtration across various beverage application

Key Features

PARSWOOD™ filtration housings are thoughtfully engineered to elevate performance, reduce downtime, and enhance sanitary control across food and beverage applications.

• Enclosed, drip-free design minimizes mess and product loss — a clean alternative to plate filters
• Effortless loading and operation with no need for wetting or post-tightening
• Enhanced process safety and quality with zero drip losses and limited operator exposure to process fluids
• Simplified maintenance — no loose gaskets or bulky plate stacks to clean or sanitize
• Compact vertical footprint saves space during operation and storage
• Modular flexibility — housings can accommodate a single module or scale up as needed
• Reusable design — filter modules can be back-flushed and reused multiple times
• Hygienic construction from high-grade SS 316L stainless steel for sanitary compliance
• Batch versatility — suitable for both small-scale and large-volume production runs
• Sterilization-ready — compatible with in-situ steam sterilization or autoclave processing
