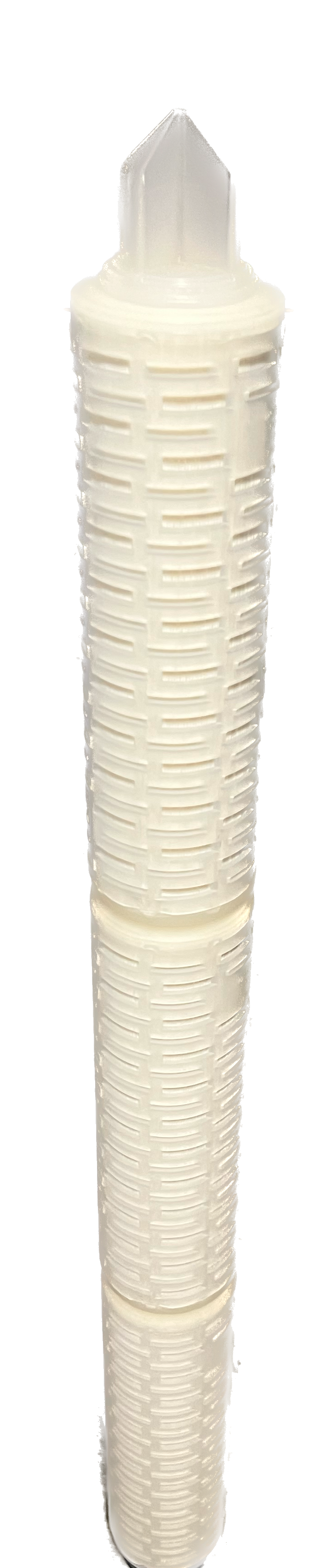

PES Pleated Filter Cartridge (Sterilizing Grade) for Wine, Beer and Spirit Pre and Final Filtration

PES Pleated Filter Cartridge (Sterilizing Grade) for Wine, Beer and Spirit Pre and Final Filtration

Regular price $354.00 USD
Regular price Sale price $354.00 USD
Sale Sold out
Shipping calculated at checkout.

Experience the epitome of filtration excellence with Polyethersulfone (PES) Pleated Filter Cartridges meticulously designed to deliver unparalleled bacteria and particle removal capabilities, even at high flow rates and low pressure drops across a wide range of biological fluids. With an unwavering commitment to filtration performance, stability, and extended service life, these cartridges provide the utmost assurance for your filtration needs. Rest assured, all components of these cartridges comply with FDA regulations for safe food contact use. Available in a range of grades including 0.1μm, 0.22μm, 0.45μm, 0.65μm, and 1.2μm, and customizable with various End Cap modifications, Length options, and O-Ring (Seal) materials, allowing for precise tailoring to meet the unique requirements of your specific application. Discover the pinnacle of filtration versatility with Polyethersulfone (PES) Pleated Filter Cartridges.

Features

  • Durable PES and PP components
  • Highly porous asymmetric membrane
  • Excellent chemical compatibility
  • Low extractables
  • 100% integrity tested

Applications

  • Food and Beverage: Wine, Beer and Spirit final filtration before bottling/packaging to remove all microbiological contaminants
  • Large infusion (LVP), small injection (SVP), eye drops sterilization filtration
  • Sterilization filtration of biological product
  • Sterilization filtration of antibiotic aqueous solution
  • Cleaning fluid and disinfectant sterilizing filtration

Dimension
Diameter: 69mm (2.7")
Length: 5”, 10”, 20”, 30”, 40”

Material of Constructions

Media: PES
Support: PP
Cage/Core/End: PP
Connection Adaptor: SS Insert, PSU Insert
O-Ring: Silicone, EPDM , FKM

Operating Conditions
Max. Operating Temperature: 80℃
Max. Operating DP: 4 Bar@20℃, 2.4 Bar@80℃
Sterilization
Autoclave Sterilization: 121℃, 60 Min
SIP: 135℃, 30 Min, 20 cycles

Filtration Area: 0.65 m² per 10” Filter
Extractables: 10” Filter Cartridges < 20mg

Integrity Test

Micron Bubble Point≥ (Water) Diffusion Flow≤(10”Ø69mm)
0.1μm 4.8Bar 25ml/min@4.475Bar
0.22μm 3.2Bar 25ml/min@2.76Bar
0.45μm 2.1Bar 25ml/min@1.70Bar
0.65μm 1.32Bar 12ml/min@1.1Bar

Product features

Materials and care

Merchandising tips

View full details
Your cart
Variant Variant total Quantity Price Variant total

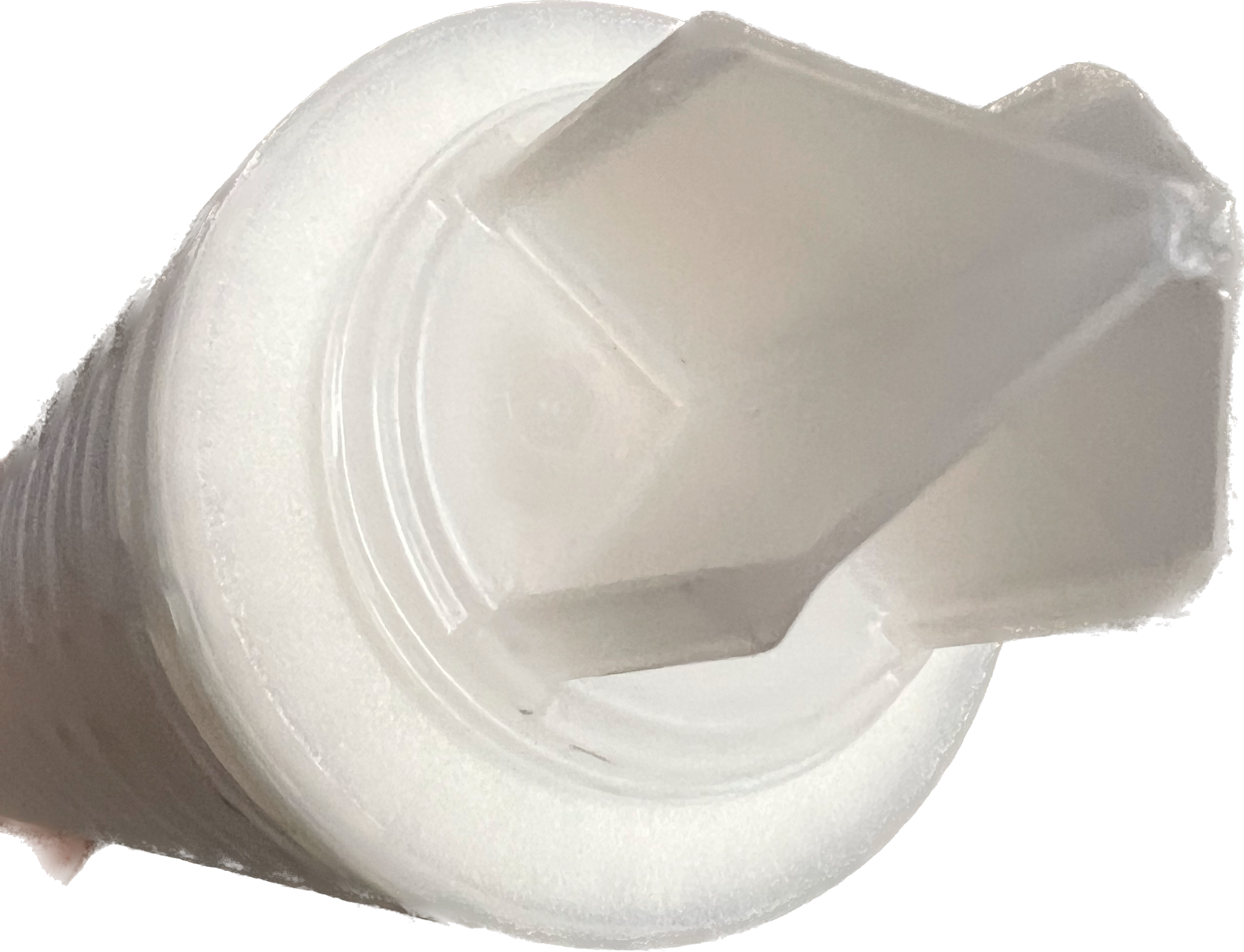

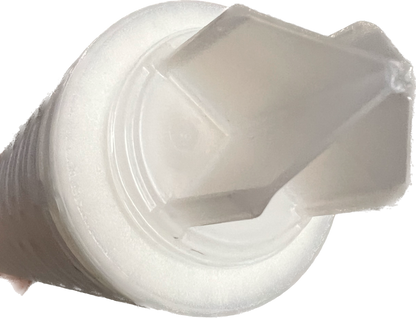

0.45μm; 30" Length; 226 with Fin (Code 7) End Cap; Silicone Seal Material; Polypropylene CorePES045B30SP
