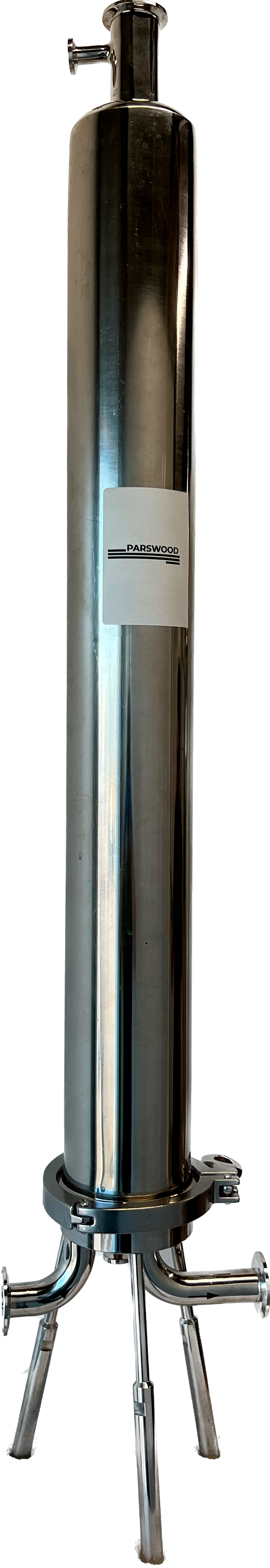

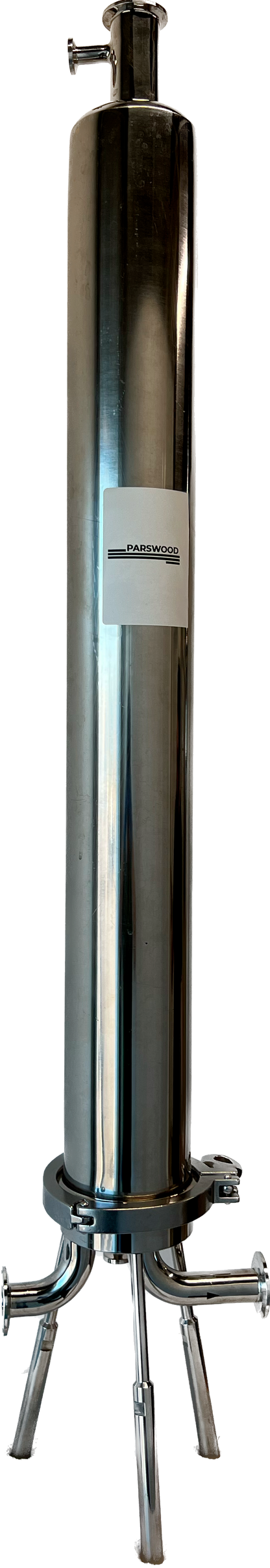

Single & Multi-Bag Filter Housings (MTO)

Single & Multi-Bag Filter Housings (MTO)

Regular price From $2,812.00 USD
Regular price Sale price From $2,812.00 USD
Sale Sold out
Shipping calculated at checkout.
↓ Download Technical Datasheet (PDF) Request a quote

PARSWOOD stainless steel bag filter housings provide particulate filtration for water treatment, food and beverage processing, chemicals and industrial process liquids. Choose a single-bag housing for smaller systems or a multi-bag configuration for higher flow requirements.

Available in 304 or 316L stainless steel, with a choice of process connections, seal materials and surface finishes to suit your installation.

Choose your configuration

  • Single-bag housings: Accommodate one standard Size 1 or Size 2 filter bag.
  • Multi-bag housings: Accommodate 2, 3, 4, 6, 8 or 12 Size 2 filter bags.

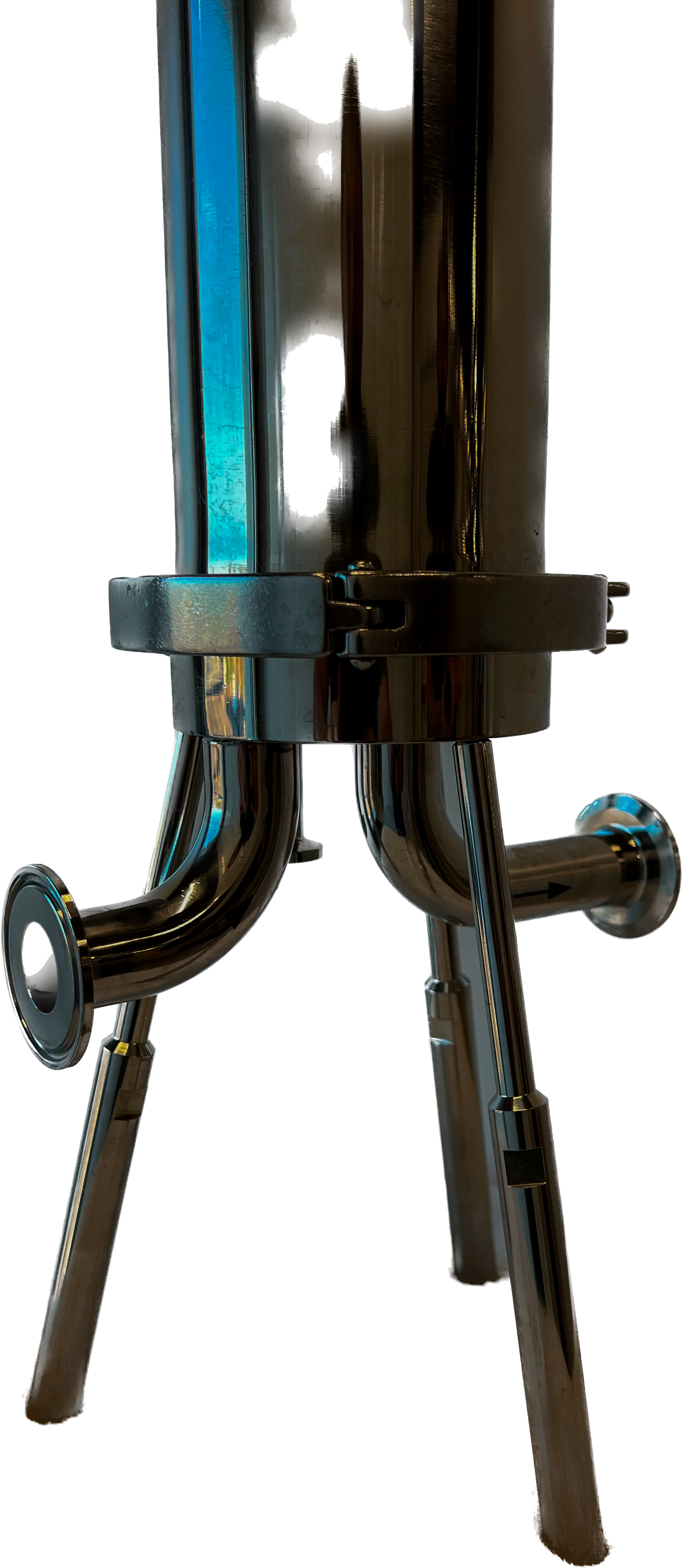

  • Process connections: Threaded, flanged or Tri-Clamp options, depending on the model.
  • Housing seals: EPDM, NBR, Silicone or FKM.
  • Surface finish: Glass-beaded finish, with polishing options available by request.

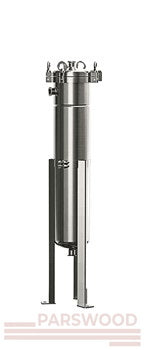

Swing-bolt closures provide access for bag replacement and maintenance. Gauge connections allow monitoring of inlet and outlet pressure, while vent and drain connections support servicing. Single-bag models include adjustable legs.

Applications

Suitable applications include process water, aqueous solutions, compatible chemicals, oils, paints and coatings, and food and beverage process liquids. Select the housing material, seals and filter media for your liquid and operating conditions.

Pressure, temperature and flow selection

Available configurations include housings specified for 10 bar design pressure and temperatures up to 121°C (250°F). The allowable pressure at operating temperature depends on the selected model, seal material and vessel documentation; these limits should not be assumed to apply simultaneously.

Housing selection also depends on liquid viscosity, flow rate, micron rating, contaminant loading and acceptable pressure drop. PARSWOOD can help select the bag capacity and connection size for your process.

Dimensions and connections

Refer to the drawings and tables below for the illustrated single-bag and multi-bag configurations. Dimensions and port arrangements are model-specific.

Flanged models are available with Class 150 raised-face connections. Confirm flange size, applicable standard and mating requirements when ordering. Flange class does not replace the housing’s documented pressure rating.

Documentation and special requirements

Specify any required pressure-vessel code, certification, inspection records or material documentation when requesting a quotation. PARSWOOD will confirm the available construction and documentation for the selected configuration.

Ordering and delivery

These housings are supplied on a make-to-order basis. Provide:

  • Bag size and number of bags
  • Required flow rate and liquid being filtered
  • Operating pressure and temperature
  • Stainless steel grade and seal material
  • Connection size and type
  • Surface finish and documentation requirements

Estimated delivery: 4–8 weeks from order confirmation, subject to the configuration and approved drawings. Your quotation will confirm the applicable lead time.

Request a housing quotation, or contact sales@parswood.ca for selection support.
