PARSWOOD™ High Flow Pleated Filter Cartridges
PARSWOOD™ High Flow Pleated Filter Cartridges
This item is produced on a Make-to-Order (MTO) basis to meet your specific requirements. Kindly allow 3 to 6 weeks for manufacturing and delivery.

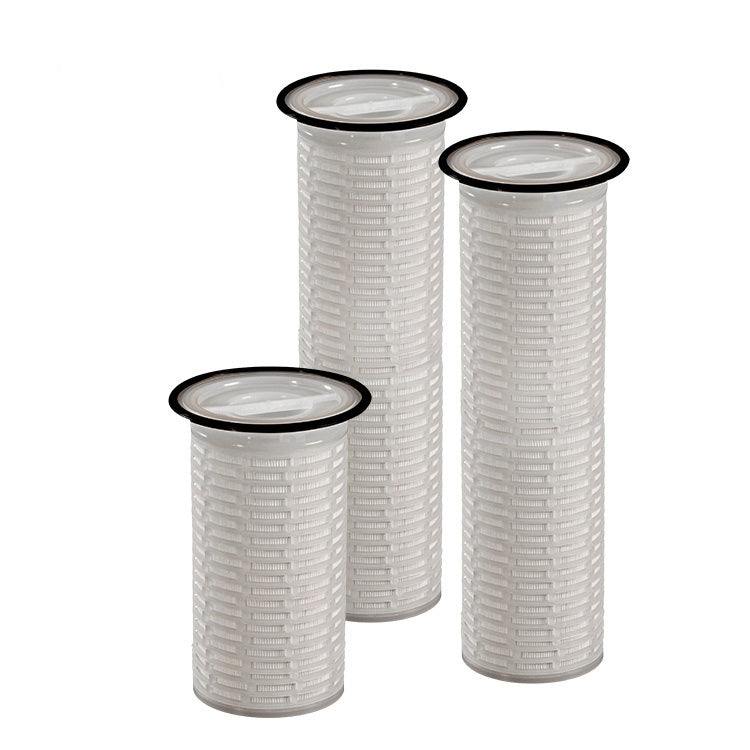

The large 6 inch (152mm) diameter High Flow series filter cartridge with unique sealing device adjusts to fit into most existing size 1 and size 2 bag filter housing. The multiple layers with depth pleated design provides higher removal efficiency and longer service life than other cartridges of equal efficiency.

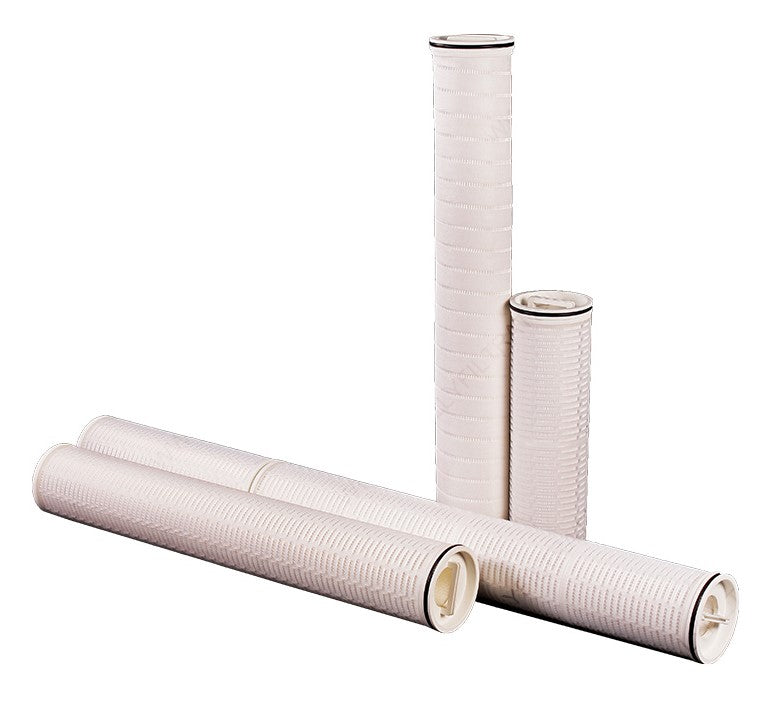

Also offer in 10", 40" and 60" to retrofit other manufacturers (3M, Pall, Parker...) - See below for Antibacterial Pleated Filter Cartridge Information
Customers no longer have to choose between cartridge and bag technologies. The cartridge with inside-to-outside flow design ensures that the unwanted particles are trapped with the element. High Flow Series element offer higher surface area than conventional cartridge or bag technologies to reduce the operating costs and making change out quickly and easily for critical applications.
Features
- Available in Nominal/absolute structure, particle removal rating from 0.5 to 120 Micron
- 100% polypropylene components provide wide chemical compatibility, suitable for using in a variety of fluids
- Multiple pleated layers media construction with high filtration area
- Easily to retrofit into existing size 1 and size 2 bag housing
- Large 152mm diameter cartridge suitable for high flow/high contaminant applications
- The inside-to-outside fluid flow ensures the unwanted particles are trapped with the element
- Lower filtration costs due to fewer filter elements, lower labor costs due to less cartridges change-outs
Applications
- Food & Beverage
- RO Pre-Filtration
- Process Water
- Automotive Industry
- Sea water desalination
- Drinking water
- Machinery & Equipment
Dimensions
Outer Diameter: 6” (152mm)
Length: 16 ”(370mm) =Size 1; 32 ”(634mm) =Size 2
Also offer in 10", 40" and 60" to retrofit other manufacturers (See Below for Antibacterial Pleated Filter Cartridge)
Material of Construction
Media: Polypropylene
Support: Polypropylene
End Cap: Polypropylene
Adjustable Flange: Polypropylene
Sealing: EPDM , FKM , NBR
Performance
Max. Operating temperature: 80℃
Max. Operating DP: 3.4 bar@ 25℃
Recommended Change out DP: 2.4Bar, 20°C
Food Contact Compliance
- Filter Cartridges are manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality
- Management System
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Materials of filter media and hardware meet the specifications for biological safety per USP Class VI-121℃ for plastics
- Passed European Commission Directives (EU10/2011)
- Halal Certified
Size 1 & Size 2 High Flow Format
| Flange type | L(mm) |
| Size 1 | 370 |
| Size2 | 634 |
| Size2L | 660 |
Ordering Guide
| Code Segment | Description | Options |
| AB | Grade | ABC (Absolute), NBC (Nominal) |
| 0050 | Removal Rating | 0050 = 0.5µm, 0100 = 1µm, 0300 = 3µm, 0500 = 5µm, 1000 = 10µm, 2000 = 20µm, 4000 = 40µm, 5000 = 50µm, 7000 = 70µm, 10000 = 100µm, 12000 = 120µm |
| B | Flange Types | B = For side entry housing (177mm), C = For over the top housing (183mm) |
| 1 | Length | 1 = 370, 2 = 634, 2L = 660 |
| B | Seal Material | B = NBR, E = EPDM, V = FKM |

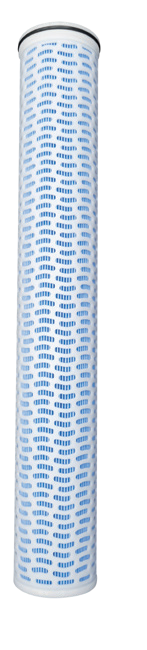

PARSWOOD™ High-Flow Antibacterial Pleated Filter Cartridge
Premium Performance | Antibacterial Protection | Industrial High-Flow Design
The PARSWOOD™ High-Flow Antibacterial Pleated Filter Cartridge is engineered for demanding industrial, municipal, and commercial applications where high flow capacity, long service life, and superior hygiene are essential.
Designed with dual antibacterial layers on both the upstream and downstream surfaces, this cartridge significantly reduces bacteria-related clogging—helping users save on operating costs, extend runtime, and maintain system integrity, even in challenging environments.
With multiple lengths and removal ratings available, PARSWOOD™ High-Flow Cartridges are an ideal upgrade for users of older HF, HFM, or other big-format high-flow cartridges.
Key Features
- Dual Antibacterial Layer (PP + PET)
Prevents bacterial growth inside the filter, reducing clogging and extending service life. - High Flow Capacity
Large surface area allows for high-volume filtration with lower pressure loss. - Multiple Micron Ratings Available
Suitable for fine, medium, and coarse filtration depending on the application. - Enhanced Cost Efficiency
Longer lifespan and reduced change-out frequency. - Clean Manufacturing
Produced in a controlled environment for consistent quality and purity. - Industry-Standard Sizing
Compatible with most 20", 40", and 60" high-flow housings.
Specifications
- Available Lengths: 20", 40", 60"
- Outer Diameter: 154 mm
- Recommended Change-Out Pressure Drop: 2.4 bar @ 20°C
- Maximum Operating Temperature: 80°C
Materials of Construction
- Filter Media: PP + PET Antibacterial Layer
- Support Layer: PP
- Cage / Outer Structure: PP
All materials selected for high chemical and mechanical compatibility.
Applications
Water Treatment & Desalination
- RO & UF Pre-Filtration (Pre-RO / Pre-UF)
- Municipal water treatment
- Process water polishing
- Seawater desalination systems
Industrial & Energy
- Oil & Gas: Amine Sweetening Units, Produced Water, Injection Water Treatment
- Refineries & Petrochemical Plants
- Power plant water treatment (cooling & boiler makeup)
- Machinery & equipment filtration
- Chemical processing and blending
Food & Beverage
- Bottled water
- Ingredients & syrup filtration
- Brewing and beverage clarification
Environmental & Waste Streams
- Wastewater polishing
- Reclaimed / recycled water
Why Choose PARSWOOD™ High-Flow Cartridges?
✔ Better bacterial control than standard PP filters
✔ Longer lifespan = lower operating cost
✔ High flow, low pressure drop
✔ Compatible with major high-flow housings
✔ Ideal for industrial and sanitary applications
Ordering Guide
| Length | Grade | Removal Rating | Seal Material |
| 20 = 20" | A = Absolute | 0050 = PP0.5µm | S = Silicone |
| 40 = 40" | N = Normal | 0100 = PP1µm | E = EPDM |
| 60 = 60" | 0300 = PP3µm | V = FKM | |
| 0500 = PP5µm | B = NBR | ||
| 1000 = PP10µm | F = E-FKM | ||
| 2000 = PP20µm | |||
| 4000 = PP40µm | |||
| 7000 = PP70µm | |||
| 9900 = PP100µm |
