Lenticular Depth Filter Cartridges for Wine, Beer, Spirit, Oil Clarification

Lenticular Depth Filter Cartridges for Wine, Beer, Spirit, Oil Clarification

$190.00 USD
$190.00 USD
Sale Sold out
Shipping calculated at checkout.

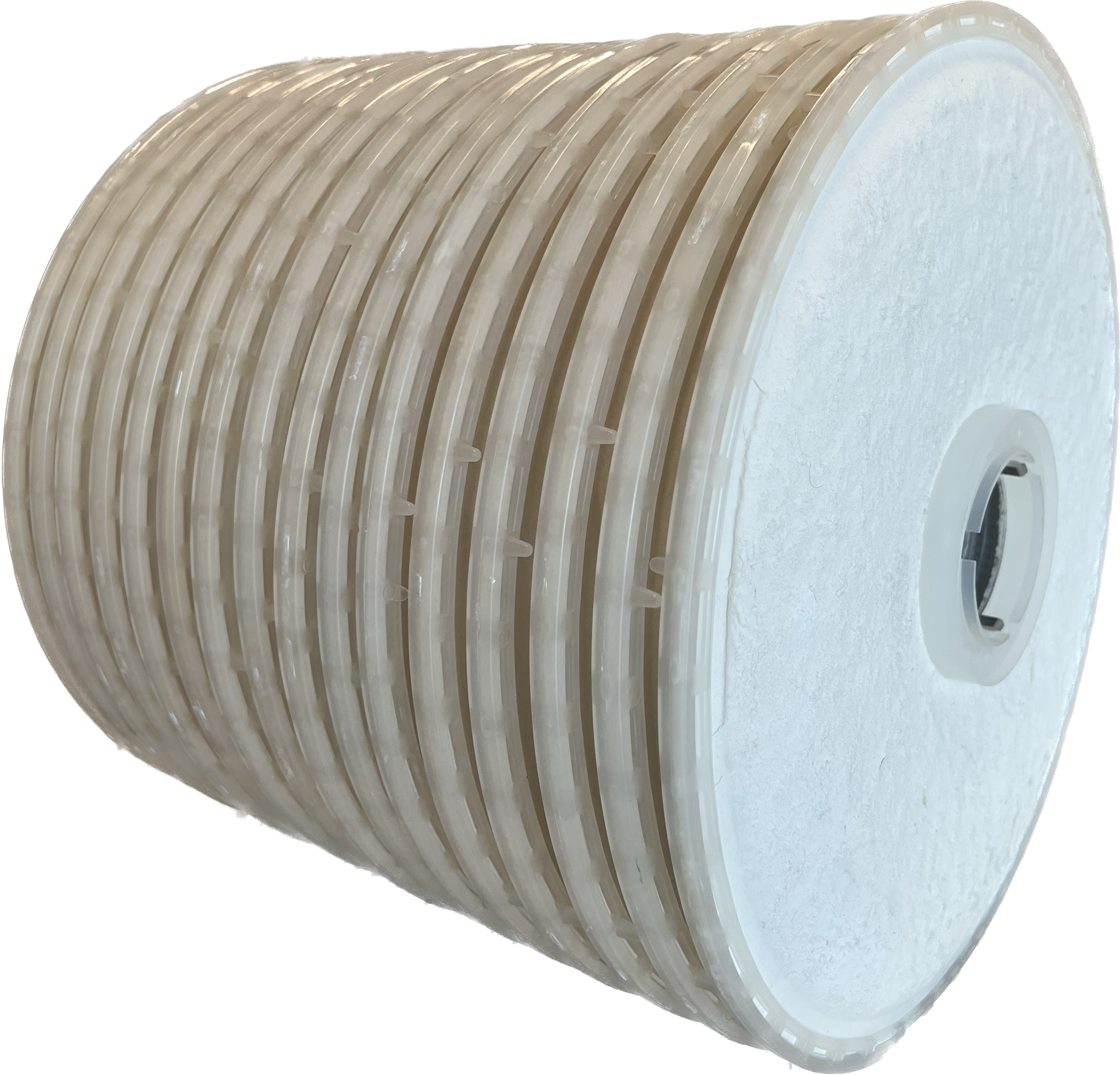

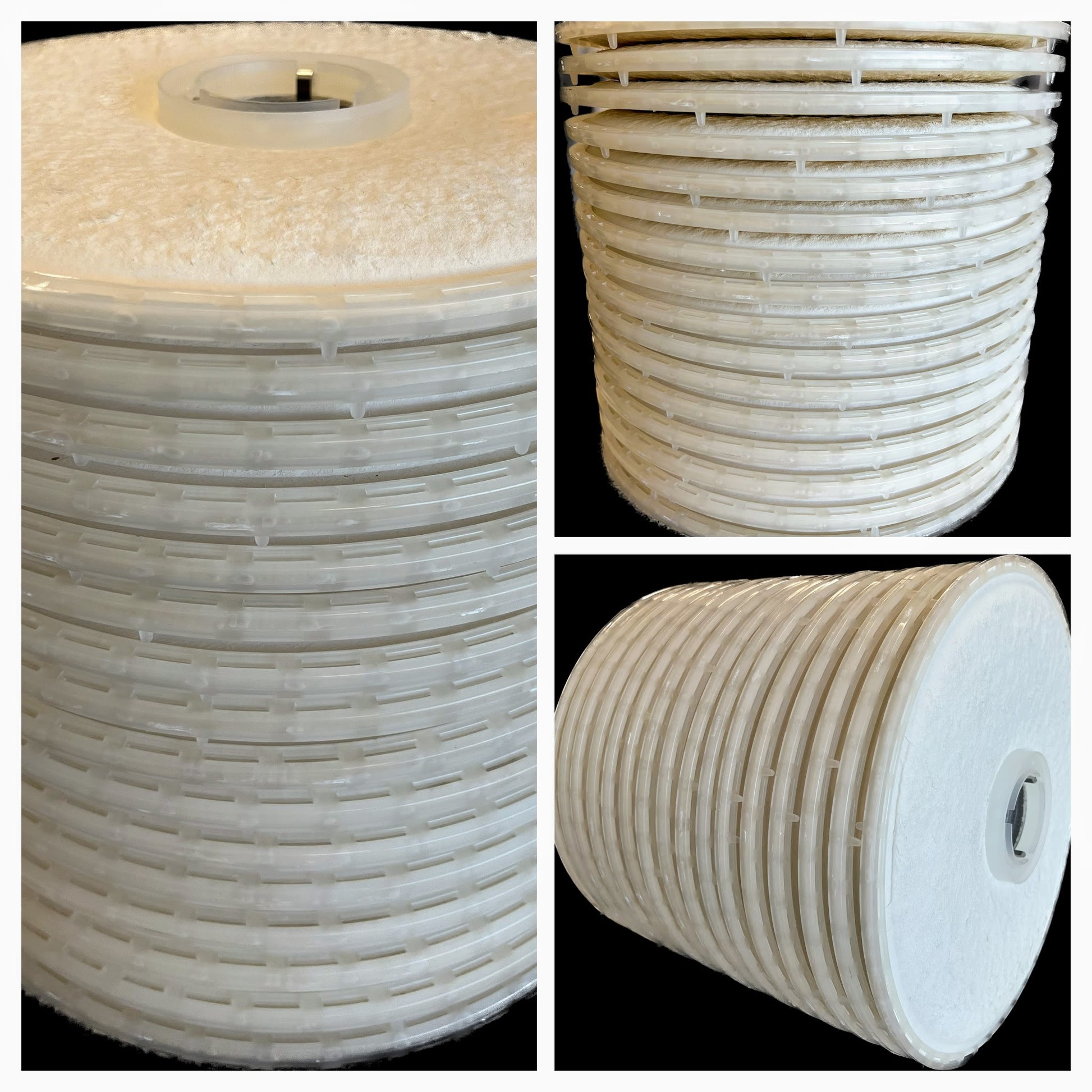

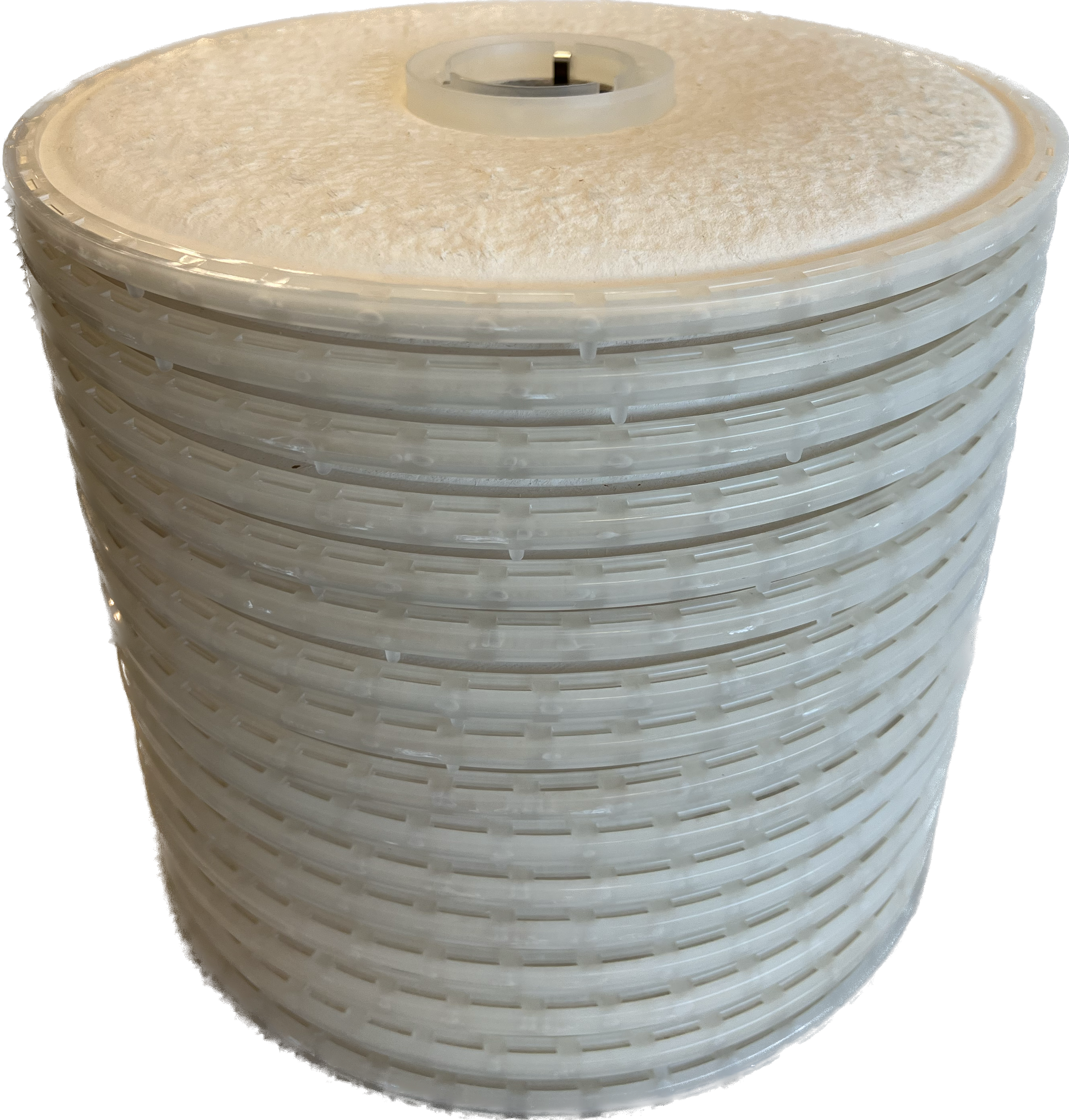

Experience the excellence of PARSWOOD Lenticular filter, the ultimate filter cartridge utilizing depth filter sheets. Crafted with precision, it boasts a double separator construction that maximizes clarity and stability. The robust separators fully support the sheet materials, preventing deformities and preserving integrity even during heat treatments and hot sanitation processes. Engineered with rigid external clips, it ensures safe and effortless module loading and unloading, guaranteeing hassle-free handling with unwavering reliability. Discover the pinnacle of filtration technology with PARSWOOD Lenticular filter.

Features

  • Washable under certain conditions, resulting in longer service life
  • Easy and reliable handling rigid external clips protect filer sheet during module loading and unloading
  • No adverse effects to filter sheets during hot sanitization or process filtration

Applications

  • Food Products: Syrups, Vinegar, Edible Oils, Sugars
  • Beverages: Wine, Beer, Juices, Soft Drinks, Cider, Liquor, Milk and dairy products
  • Cosmetics: Perfumes, Lotions, Shampoos, Deodorants, Colognes
  • Oil Extraction: Clarification, Removing waxes, particulates Removal

Material of Constructions
Depth Filter Sheet: Cellulose fibers, Resins, Perlite, Diatomaceous earths, etc.
Core/ Support Separator: PP
Sealing: Silicone, EPDM, NBR, FKM, E-FKM

Ordering Information:

Removal Rating

  • 002: 0.2-0.4μm
  • 004: 0.4-0.6μm
  • 006: 0.6-1μm
  • 100: 1-3μm
  • 150: 2-5μm
  • 200: 3-7μm
  • 210: 10-15μm
  • 230: 25-30μm
  • 240: 40-50μm
  • 250: 50-60μm

End Cap Type

  • D =DOE with gaskets
  • S =SOE with double O-rings

Outer Diameter

  • 8 = 8”
  • 12 = 12”
  • 16 = 16”

Seal Material

  • S = Silicone
  • E = EPDM
  • B = NBR
  • V = FKM

Construction

  • 7 = 7 Cell (8" SOE)
  • 8 = 8 Cell (8" DOE)
  • 9 = 9 Cell (12", 16")
  • 12 = 12 Cell (12", 16")
  • 15 = 15 Cell (12", 16")
  • 16 = 16 Cell (12", 16")

Handle

  • H
View full details
Variant Variant total Quantity Price Variant total
3-7um; 12" ; Buna; 16 cell; DOE with gasketsL200D12B16
3-7um; 12" ; Buna; 16 cell; DOE with gasketsL200D12B16
$190.00/ea		 $0.00
$190.00/ea $0.00
3-7um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL200D12B16H
3-7um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL200D12B16H
$198.00/ea		 $0.00
$198.00/ea $0.00
1-3um; 12" ; Buna; 16 cell; DOE with gasketsL100D12B16
1-3um; 12" ; Buna; 16 cell; DOE with gasketsL100D12B16
$190.00/ea		 $0.00
$190.00/ea $0.00
1-3um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL100D12B16H
1-3um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL100D12B16H
$198.00/ea		 $0.00
$198.00/ea $0.00
0.2-0.4um; 12" ; Buna; 16 cell; DOE with gasketsL002D12B16
0.2-0.4um; 12" ; Buna; 16 cell; DOE with gasketsL002D12B16
$190.00/ea		 $0.00
$190.00/ea $0.00
0.2-0.4um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL002D12B16H
0.2-0.4um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL002D12B16H
$198.00/ea		 $0.00
$198.00/ea $0.00
0.6-1um; 12" ; Buna; 16 cell; DOE with gasketsL006D12B16
0.6-1um; 12" ; Buna; 16 cell; DOE with gasketsL006D12B16
$190.00/ea		 $0.00
$190.00/ea $0.00
0.6-1um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL006D12B16H
0.6-1um; 12" ; Buna; 16 cell; DOE with gaskets; with handleL006D12B16H
$198.00/ea		 $0.00
$198.00/ea $0.00
0.6-1um; 16" ; Buna; 16 cell; DOE with gasketsL006D16B16
0.6-1um; 16" ; Buna; 16 cell; DOE with gasketsL006D16B16
$409.00/ea		 $0.00
$409.00/ea $0.00
Lenticular Depth Filter Cartridges for Wine, Beer, Spirit, Oil Clarification
0.6-1um; 12" ; Buna; 16 cell; SOE with double O-ringsL006S12B16
0.6-1um; 12" ; Buna; 16 cell; SOE with double O-ringsL006S12B16
$249.00/ea		 $0.00
$249.00/ea $0.00
