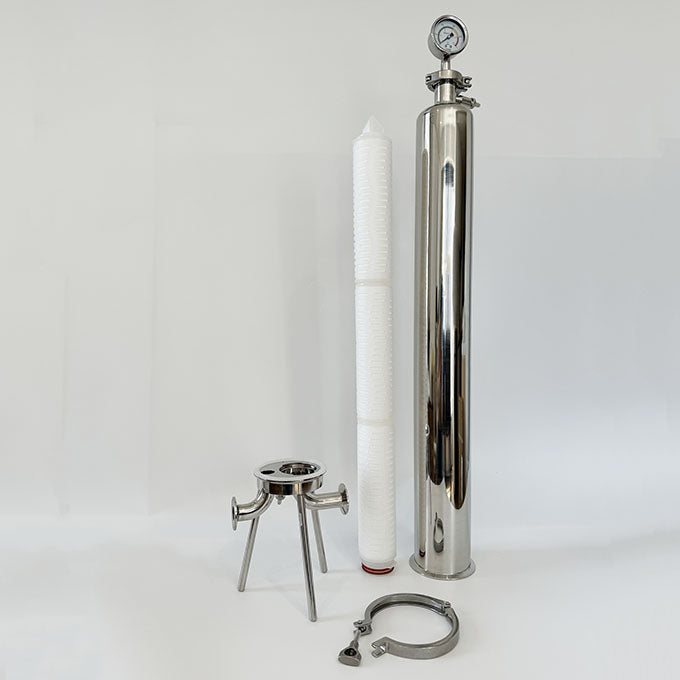

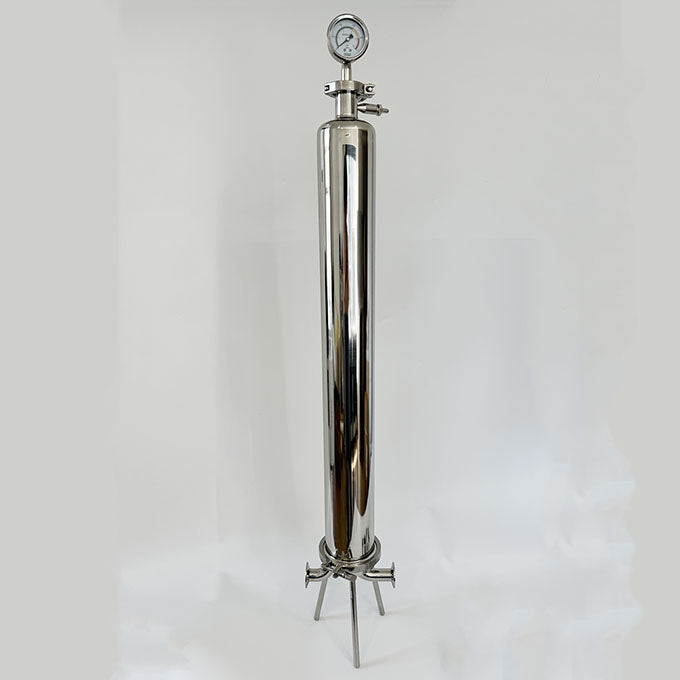

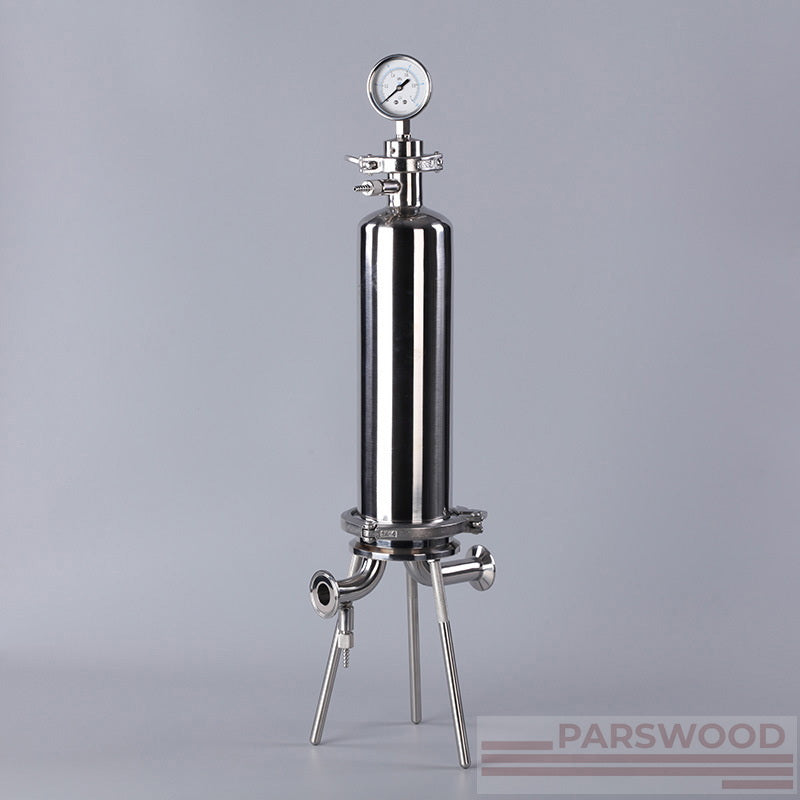

Single Round Sanitary Liquid Filter Housing

This item is produced on a Make-to-Order (MTO) basis to meet your specific requirements. Kindly allow 3 to 6 weeks for manufacturing and delivery.

Single-round Sanitary Liquid Filter Housing is designed to meet the sanitary requirements. It adopts sanitary pipe fittings, no blind angel and residual liquid, easy to clean and disassemble, suitable for small flow filtration in low and medium pressure environment. It is widely used in food and beverage industry.

Surface Finish

Polish Type: Electropolished OR Mechpolished
Surface Option: Internal Ra: 0.3μm / External Ra: 0.4μm

Materials
Filter Shell: 304, 316L
Drain/Vent Valve: 304, 316L
Clamp: 304
Stabilizer Blade: 304
Seal Material/Gasket: Silicone, FKM, EPDM

Operating Conditions
Design Pressure: 0.6Mpa (6bar) OR 1.0Mpa (10bar)

Max. Operating Temperature: 150℃

Connection
Shell Connection: Clamp, strong clamp

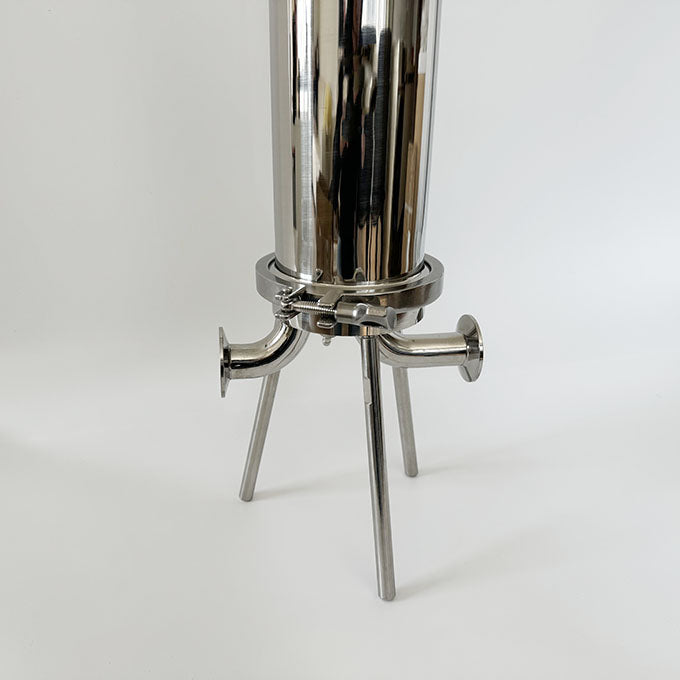

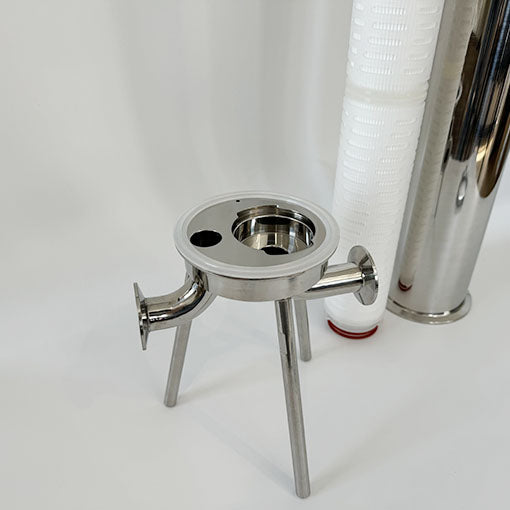

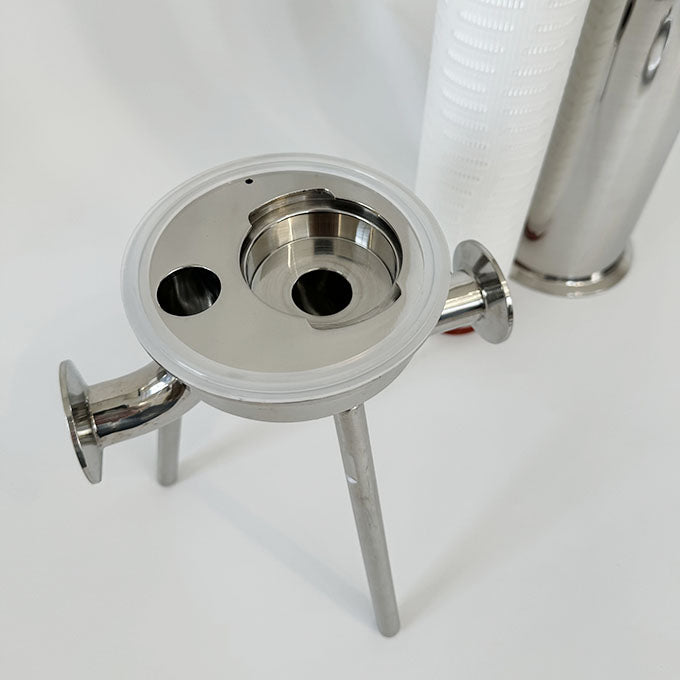

Inlet & Outlet: Tri-clamp / flange
Vent Valve: Inner bole4mm (1/8"), connect with 8mm (5/16") pipe
Drain Valve: Inner bole4mm (1/8"), connect with 8mm (5/16") pipe

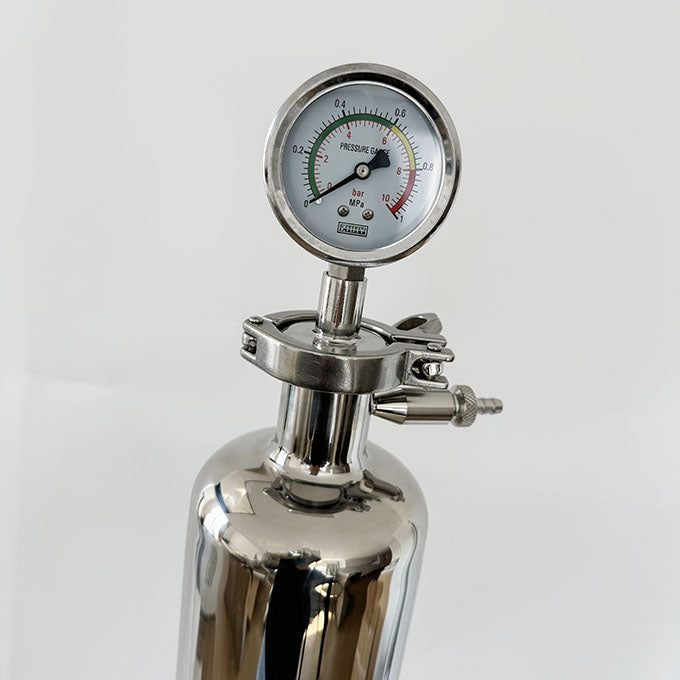

Pressure Gauge Kit: TC-1.5"

Drawing

Dimension

LEAD TIME: 3-6 Weeks
